Light Sport Power Panel

Click on the images above ↑ to see the new full image viewer. ↑

£350

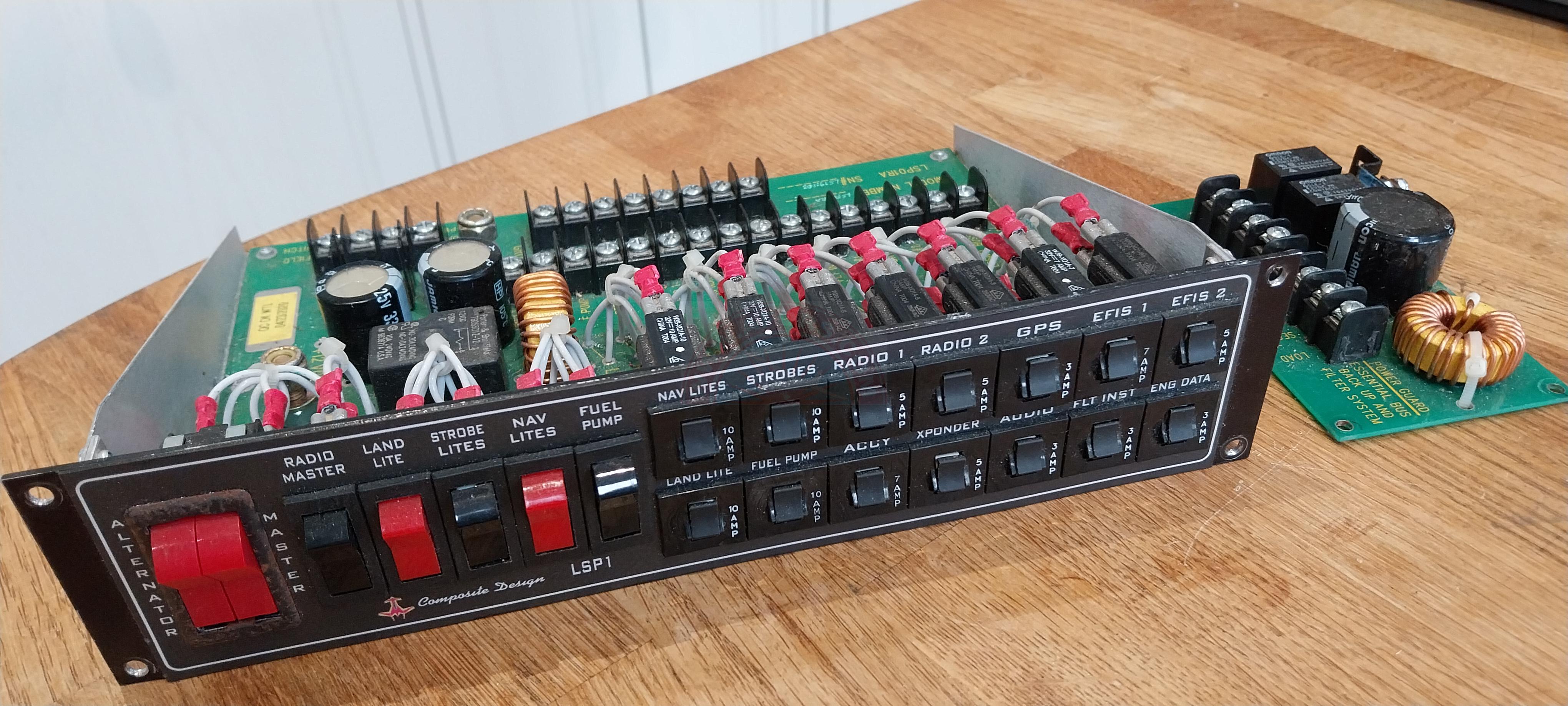

Power Panel plus Power Guard module. Made by Composite Designs.

These items had been installed but never used, other than for testing purposes. Current price over $900 from Spruce or £900 from LAS.

From ACS.....
Specifications
Dimensions: 2.375”H x 10.50”W x 7.00”D
Weight: approx. 2.50 pounds
Panel Specifications:
Capacity:17.5V max. at 60A (Main Buss)
Radio Buss: 15A cont.
Essential Buss: 10A cont.
Switches: Master
Alternator Field
Radio Master
Landing Light
Strobe Lights
Nav Lights
Fuel Pump
Circuit Breakers – Main Buss:
Landing Light
Strobes
Nav Lights
Fuel Pump
Engine Accessories
Circuit Breakers – Radio Buss:
Radio 1
Radio 2
Transponder
GPS
Audio
Circuit Breakers – Essential Buss:
EFIS 1
EFIS 2
Flight Inst
Engine Data
This Panel has Essential Buss back-up capability for use with the Composite Design Power Guard Module and back-up battery (part number 11-02044)
